Calculating `siconc` from `sithick` and `sivol`

Below, I describe how I calculated sea ice concentration (siconc) from sea ice thickness (sithick) and sea ice volume (sivol) for the EC-Earth3P-HR and HadGEM3-GC31 models. For details on how the data for those models was downloaded, see the Downloading model data with esgpull <../docs_data/esgpull_downloads> guide. For details on how to prepare the data for the HadGEM3-GC31-HH model, see Trimming data to the CAA region.

Contents

Introduction
Example file from EC-Earth3P-HR
- Calculating siconc
- Validating the siconc calculation
Writing calculated siconc data to file
Calculating siconc for an example HadGEM3-GC31-MM dataset
- Validating the siconc calculation by interpolating to a regular grid
Writing calculated HadGEM3-GC31-MM siconc data to file
Writing calculated HadGEM3-GC31-HM siconc data to file

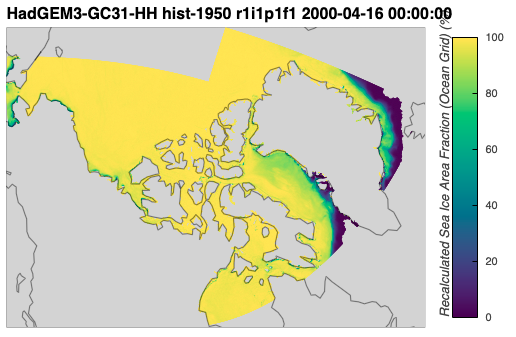

Calculating siconc for an example HadGEM3-GC31-HH dataset
Writing calculated HadGEM3-GC31-HH siconc data to file

Introduction

back to top

In order to calculate landfast ice (silandfast) as shown in the Calculating landfast ice guide, I use sea ice concentration (siconc) and sea ice speed (sispeed) data. For the EC-Earth3P-HR model, the siconc and sispeed files available for download are on the same irregular grid. However, for the HadGEM3-GC31-HM and HadGEM3-GC31-MM models, siconc is on a lower-resolution regular grid while sispeed is on the full-resolution irregular grid. For the silandfast calculation, siconc and sispeed must be on the same grid.

The HadGEM3-GC31-HM and HadGEM3-GC31-MM models have variables for sea ice thickness (sithick) and sea ice volume (sivol) available, and those variables are on the same irregular grid as sispeed. Therefore, I use sithick and sivol to calculate siconc for the HadGEM3-GC31-HM and HadGEM3-GC31-MM models.

Example file from EC-Earth3P-HR

back to top

The EC-Earth3P-HR model has all three of these variables on the same irregular grid, so I’ll start there to get functions set up to do this calculation, as it will be easier to check that they did it correctly.

Since the EC-Earth3P-HR model already has siconc on the irregular grid, I will use that model as a test to see whether the sea ice concentration values I get by combining sithick and sivol match with the siconc that are available for download. This will give me an idea of how confident I can be in the values of siconc I get by combining sithick and sivol from the HadGEM3-GC31-HM and HadGEM3-GC31-MM models.

First, I’ll list the available variables as they are now.

from arctichoke.path.variable_paths import list_available_variables

list_available_variables(
    source_id = 'EC-Earth3P-HR',
    experiment_id = 'hist-1950',
    list_var_mods = True,
)

{'EC-Earth-Consortium/EC-Earth3P-HR': {'hist-1950': {'r1i1p2f1': {'SImon': {'siu': {'': 65},
     'siv': {'': 65},
     'sithick': {'': 65, 'trim_NWP_': 65},
     'siage': {'': 65},
     'siconc': {'': 65, 'trim_NWP_': 65},
     'sispeed': {'': 65, 'trim_NWP_': 65},
     'silandfast': {'trim_CAA_': 65},
     'sivol': {'': 65}}},
   'r2i1p2f1': {'SImon': {'siage': {'': 65},
     'sithick': {'': 65, 'trim_NWP_': 65},
     'siv': {'': 65},
     'siu': {'': 65},
     'siconc': {'': 65, 'trim_NWP_': 65},
     'sispeed': {'': 65, 'trim_NWP_': 65},
     'silandfast': {'trim_CAA_': 65},
     'sivol': {'': 65}}},
   'r3i1p2f1': {'SImon': {'sithick': {'': 65, 'trim_NWP_': 65},
     'siage': {'': 65, 'trim_NWP_': 65},
     'siu': {'': 65},
     'siv': {'': 65},
     'siconc': {'': 65, 'trim_NWP_': 65},
     'sispeed': {'': 65, 'trim_NWP_': 65},
     'silandfast': {'trim_CAA_': 65},
     'sivol': {'': 65}}}}}}

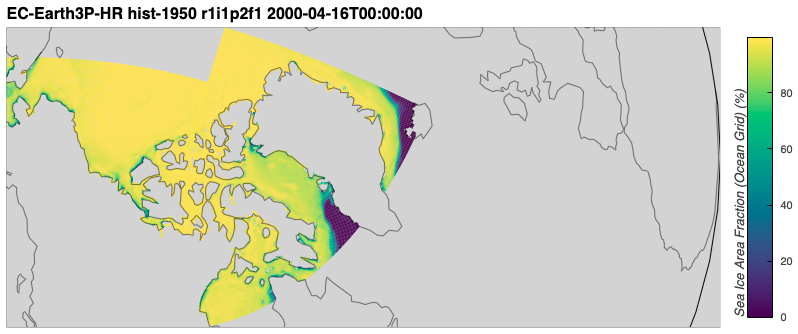

Next, I’ll load example files from the year 2000 for siconc, sithick, and sivol and plot them in April.

import xarray as xr

EC_Earth3P_HR_hist_siconc_2000 = '/arctichoke_data/bergybits/data/CMIP6/HighResMIP/EC-Earth-Consortium/EC-Earth3P-HR/hist-1950/r1i1p2f1/SImon/siconc/gn/v20181212/siconc_SImon_EC-Earth3P-HR_hist-1950_r1i1p2f1_gn_200001-200012.nc'

EC_Earth3P_HR_hist_siconc_2000_xr = xr.open_dataset(EC_Earth3P_HR_hist_siconc_2000)

from arctichoke.dataset.trim_dataset import trim_latlon
from arctichoke.params import CAA_BBOX

EC_Earth3P_HR_hist_siconc_2000_xr_trim = trim_latlon(
    EC_Earth3P_HR_hist_siconc_2000_xr,
    map_bbox = CAA_BBOX,
    precise_trim = False,
    verbose = False,
)

from arctichoke.plot.hvplots import quadmesh_map

EC_Earth3P_HR_hist_siconc_2000_trim_map = quadmesh_map(
    EC_Earth3P_HR_hist_siconc_2000_xr_trim.isel(time=3),
    'siconc',
    map_projection = 'Orthographic',
)
EC_Earth3P_HR_hist_siconc_2000_trim_map

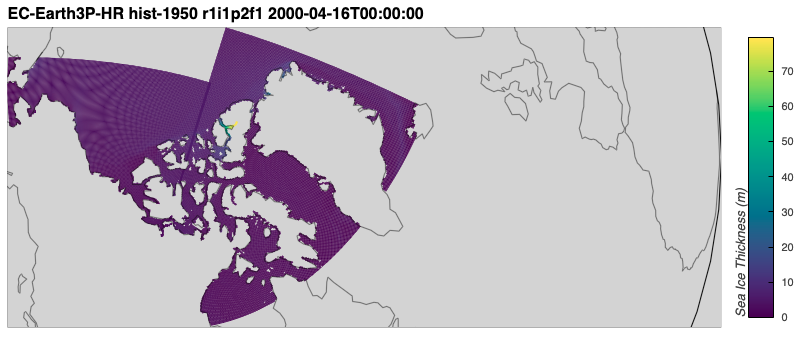

import xarray as xr

EC_Earth3P_HR_hist_sithick_2000 = '/arctichoke_data/bergybits/data/CMIP6/HighResMIP/EC-Earth-Consortium/EC-Earth3P-HR/hist-1950/r1i1p2f1/SImon/sithick/gn/v20181212/sithick_SImon_EC-Earth3P-HR_hist-1950_r1i1p2f1_gn_200001-200012.nc'

EC_Earth3P_HR_hist_sithick_2000_xr = xr.open_dataset(EC_Earth3P_HR_hist_sithick_2000)

from arctichoke.dataset.trim_dataset import trim_latlon
from arctichoke.params import CAA_BBOX

EC_Earth3P_HR_hist_sithick_2000_xr_trim = trim_latlon(
    EC_Earth3P_HR_hist_sithick_2000_xr,
    map_bbox = CAA_BBOX,
    precise_trim = False,
    verbose = False,
)

from arctichoke.plot.hvplots import quadmesh_map

EC_Earth3P_HR_hist_sithick_2000_trim_map = quadmesh_map(
    EC_Earth3P_HR_hist_sithick_2000_xr_trim.isel(time=3),
    'sithick',
    map_projection = 'Orthographic',
)
EC_Earth3P_HR_hist_sithick_2000_trim_map

import xarray as xr

EC_Earth3P_HR_hist_sivol_2000 = '/arctichoke_data/bergybits/data/CMIP6/HighResMIP/EC-Earth-Consortium/EC-Earth3P-HR/hist-1950/r1i1p2f1/SImon/sivol/gn/v20181212/sivol_SImon_EC-Earth3P-HR_hist-1950_r1i1p2f1_gn_200001-200012.nc'

EC_Earth3P_HR_hist_sivol_2000_xr = xr.open_dataset(EC_Earth3P_HR_hist_sivol_2000)

from arctichoke.dataset.trim_dataset import trim_latlon
from arctichoke.params import CAA_BBOX

EC_Earth3P_HR_hist_sivol_2000_xr_trim = trim_latlon(
    EC_Earth3P_HR_hist_sivol_2000_xr,
    map_bbox = CAA_BBOX,
    precise_trim = False,
    verbose = False,
)

from arctichoke.plot.hvplots import quadmesh_map

EC_Earth3P_HR_hist_sivol_2000_trim_map = quadmesh_map(
    EC_Earth3P_HR_hist_sivol_2000_xr_trim.isel(time=3),
    'sivol',
    map_projection = 'Orthographic',
)
EC_Earth3P_HR_hist_sivol_2000_trim_map

Calculating `siconc`

back to top

The units for the variables involved are:

siconc: Sea Ice Area Fraction (%)
sithick: Sea Ice Thickness (m)
sivol: Sea-ice volume per area (m)
- Total volume of sea ice divided by grid-cell area (this used to be called ice thickness in CMIP5)

I want siconc, which can be thought of as:
\( \text{Sea Ice Concentration} = \frac{\text{Area of ice in grid cell}}{\text{Area of grid cell}}\times 100 \)

So, if sivol is already:
\( \text{Sea Ice Volume} = \frac{\text{Volume of ice in grid cell}}{\text{Area of grid cell}} \)

And area is volume divided by thickness, then siconc could be calculated as:
\( \text{Sea Ice Concentration} = \frac{\text{Volume of ice in grid cell}}{\text{Area of grid cell}} \times \frac{1}{\text{Sea Ice Thickness}} \times 100 \)

Or, siconc = sivol / sithick * 100.

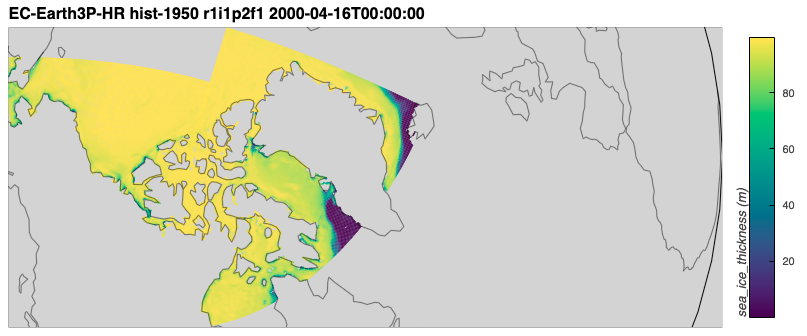

Below, I will calculate sea ice concentration from the EC-Earth3P-HR sea ice thickness and volume datasets I’ve loaded above.

EC_Earth3P_HR_hist_siconc2_2000_xr_trim = EC_Earth3P_HR_hist_siconc_2000_xr_trim.copy()
EC_Earth3P_HR_hist_siconc2_2000_xr_trim['siconc'] = EC_Earth3P_HR_hist_sivol_2000_xr_trim['sivol'] / EC_Earth3P_HR_hist_sithick_2000_xr_trim['sithick'] * 100

from arctichoke.plot.hvplots import quadmesh_map

EC_Earth3P_HR_hist_siconc2_2000_trim_map = quadmesh_map(
    EC_Earth3P_HR_hist_siconc2_2000_xr_trim.isel(time=3),
    'siconc',
    map_projection = 'Orthographic',
)
EC_Earth3P_HR_hist_siconc2_2000_trim_map

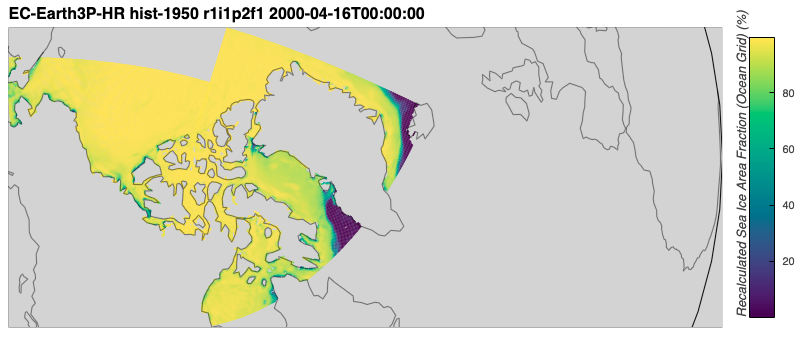

Visually, it looks pretty close to the plot above from the actual siconc data file. The colorbar is labeled sea_ice_thickness() because I didn’t edit the attributes when I overwrote sithick with siconc. I wrote a function called calc_siconc() which takes in sithick and sivol datasets and calculates sea ice concentration, making sure to update the dataset attributes. To avoid confusion with the siconc data that I’ve downloaded, I called the sea ice concentration that I calculate from sithick and sivol to be siconc2 and set the long_name attribute to “Recalculated Sea Ice Area Fraction.”

from arctichoke.analysis import calc_siconc

EC_Earth3P_HR_hist_siconc2_2000_xr_trim = calc_siconc(
    EC_Earth3P_HR_hist_sithick_2000_xr_trim,
    EC_Earth3P_HR_hist_sivol_2000_xr_trim,
)

from arctichoke.plot.hvplots import quadmesh_map

EC_Earth3P_HR_hist_siconc2_2000_trim_map = quadmesh_map(
    EC_Earth3P_HR_hist_siconc2_2000_xr_trim.isel(time=3),
    'siconc2',
    map_projection = 'Orthographic',
)
EC_Earth3P_HR_hist_siconc2_2000_trim_map

Validating the `siconc` calculation

back to top

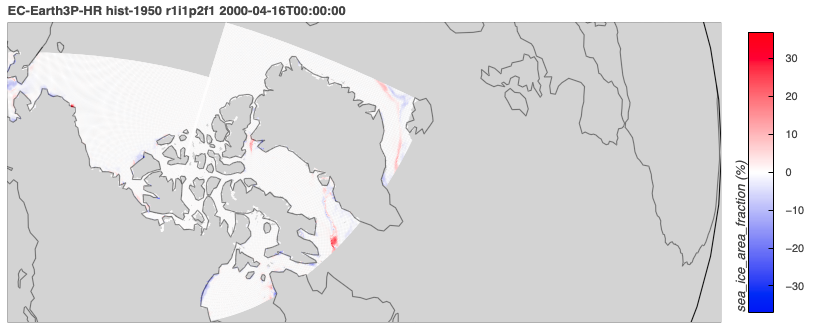

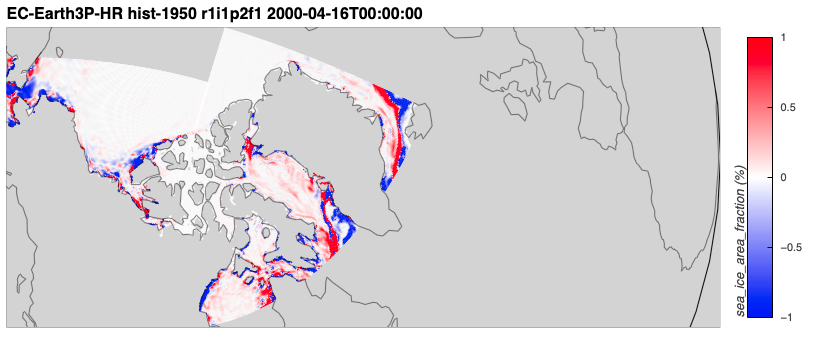

If I take the difference between the result from my calc_siconc() function and the original siconc datafile from EC-Earth3P-HR, I can see that most values are relatively close to zero.

EC_Earth3P_HR_hist_siconc2_2000_xr_trim['siconc_diff'] = EC_Earth3P_HR_hist_siconc_2000_xr_trim['siconc'] - EC_Earth3P_HR_hist_siconc2_2000_xr_trim['siconc2']

from arctichoke.plot.hvplots import quadmesh_map

EC_Earth3P_HR_hist_siconc_diff_2000_trim_map = quadmesh_map(
    EC_Earth3P_HR_hist_siconc2_2000_xr_trim.isel(time=3),
    'siconc_diff',
    map_projection = 'Orthographic',
    diverging_cbar = True,
)
EC_Earth3P_HR_hist_siconc_diff_2000_trim_map


There are a couple areas where the differences are fairly large, however these areas are generally not within the CAA. I can limit the colorbar to the range [-1, 1] to show more detail around differences close to zero. EC-Earth3P-HR_hist_r1i1p2f1_2000-04_siconc_vs_siconc2_diff_map_cbar_limited.png

Below, I calculate the number of grid cells that differ by more than 0.1 percent between my recalculation (siconc2) and the original siconc. The cell below took a full minute to execute on my laptop.

import numpy as np

siconc1 = EC_Earth3P_HR_hist_siconc_2000_xr_trim['siconc'].values.flatten()
siconc2 = EC_Earth3P_HR_hist_siconc2_2000_xr_trim['siconc2'].values.flatten()

print('siconc1:', len(siconc1), 'siconc2:', len(siconc2))

diff_count = 0
for i in range(len(siconc1)):
    if not np.allclose(
        [siconc1[i]],
        [siconc2[i]],
        rtol = 1,
        atol = 0.1,
        equal_nan = True,
    ):
        diff_count += 1
print('diff_count:', diff_count, '/', len(siconc1), '(',diff_count/len(siconc1)*100,'%)')

siconc1: 1564140 siconc2: 1564140
diff_count: 62807 / 1564140 ( 4.015433401102203 %)

Only about 4% of values differ by more than 0.1 percent. If I take instances of np.nan to equal zero, that percentage drops to 0.34.

diff_count = 0
for i in range(len(siconc1)):
    if not np.allclose(
        [siconc1[i]],
        [siconc2[i]],
        rtol = 1,
        atol = 0.1,
        equal_nan = True,
    ):
        if np.isnan(siconc1[i]) and siconc2[i] == 0:
            foo = 2
        elif siconc1[i] == 0 and np.isnan(siconc2[i]):
            foo = 2
        else:
            diff_count += 1
print('diff_count:', diff_count, '/', len(siconc1), '(',diff_count/len(siconc1)*100,'%)')

diff_count: 5384 / 1564140 ( 0.34421471223803498 %)

I’m concluding that this function I wrote to calculate siconc from sithick and sivol is sufficient for testing with HadGEM3-GC31-HM/MM, where I do not have siconc on an irregular grid.

Writing calculated `siconc` data to file

back to top

Next, I’ll write a function which will take the siconc2 data calculated by calc_siconc() and write it to netCDF files that I can access later. First, I’ll make lists of all the sithick and sivol files I will use in the calculation.

from arctichoke.path import list_variable_files

sithick_list = list_variable_files(
    source_id = 'EC-Earth3P-HR',
    variable_id = 'sithick',
    experiment_id = 'hist-1950',
    variant_label = 'r1i1p2f1',
)
sithick_list

['/arctichoke_data/bergybits/data/CMIP6/HighResMIP/EC-Earth-Consortium/EC-Earth3P-HR/hist-1950/r1i1p2f1/SImon/sithick/gn/v20181212/sithick_SImon_EC-Earth3P-HR_hist-1950_r1i1p2f1_gn_195001-195012.nc',
 '/arctichoke_data/bergybits/data/CMIP6/HighResMIP/EC-Earth-Consortium/EC-Earth3P-HR/hist-1950/r1i1p2f1/SImon/sithick/gn/v20181212/sithick_SImon_EC-Earth3P-HR_hist-1950_r1i1p2f1_gn_195101-195112.nc',
 '/arctichoke_data/bergybits/data/CMIP6/HighResMIP/EC-Earth-Consortium/EC-Earth3P-HR/hist-1950/r1i1p2f1/SImon/sithick/gn/v20181212/sithick_SImon_EC-Earth3P-HR_hist-1950_r1i1p2f1_gn_195201-195212.nc',
...
 '/arctichoke_data/bergybits/data/CMIP6/HighResMIP/EC-Earth-Consortium/EC-Earth3P-HR/hist-1950/r1i1p2f1/SImon/sithick/gn/v20181212/sithick_SImon_EC-Earth3P-HR_hist-1950_r1i1p2f1_gn_201201-201212.nc',
 '/arctichoke_data/bergybits/data/CMIP6/HighResMIP/EC-Earth-Consortium/EC-Earth3P-HR/hist-1950/r1i1p2f1/SImon/sithick/gn/v20181212/sithick_SImon_EC-Earth3P-HR_hist-1950_r1i1p2f1_gn_201301-201312.nc',
 '/arctichoke_data/bergybits/data/CMIP6/HighResMIP/EC-Earth-Consortium/EC-Earth3P-HR/hist-1950/r1i1p2f1/SImon/sithick/gn/v20181212/sithick_SImon_EC-Earth3P-HR_hist-1950_r1i1p2f1_gn_201401-201412.nc']

from arctichoke.path import list_variable_files

sivol_list = list_variable_files(
    source_id = 'EC-Earth3P-HR',
    variable_id = 'sivol',
    experiment_id = 'hist-1950',
    variant_label = 'r1i1p2f1',
)
sivol_list

['/arctichoke_data/bergybits/data/CMIP6/HighResMIP/EC-Earth-Consortium/EC-Earth3P-HR/hist-1950/r1i1p2f1/SImon/sivol/gn/v20181212/sivol_SImon_EC-Earth3P-HR_hist-1950_r1i1p2f1_gn_195001-195012.nc',
 '/arctichoke_data/bergybits/data/CMIP6/HighResMIP/EC-Earth-Consortium/EC-Earth3P-HR/hist-1950/r1i1p2f1/SImon/sivol/gn/v20181212/sivol_SImon_EC-Earth3P-HR_hist-1950_r1i1p2f1_gn_195101-195112.nc',
 '/arctichoke_data/bergybits/data/CMIP6/HighResMIP/EC-Earth-Consortium/EC-Earth3P-HR/hist-1950/r1i1p2f1/SImon/sivol/gn/v20181212/sivol_SImon_EC-Earth3P-HR_hist-1950_r1i1p2f1_gn_195201-195212.nc',
...
 '/arctichoke_data/bergybits/data/CMIP6/HighResMIP/EC-Earth-Consortium/EC-Earth3P-HR/hist-1950/r1i1p2f1/SImon/sivol/gn/v20181212/sivol_SImon_EC-Earth3P-HR_hist-1950_r1i1p2f1_gn_201201-201212.nc',
 '/arctichoke_data/bergybits/data/CMIP6/HighResMIP/EC-Earth-Consortium/EC-Earth3P-HR/hist-1950/r1i1p2f1/SImon/sivol/gn/v20181212/sivol_SImon_EC-Earth3P-HR_hist-1950_r1i1p2f1_gn_201301-201312.nc',
 '/arctichoke_data/bergybits/data/CMIP6/HighResMIP/EC-Earth-Consortium/EC-Earth3P-HR/hist-1950/r1i1p2f1/SImon/sivol/gn/v20181212/sivol_SImon_EC-Earth3P-HR_hist-1950_r1i1p2f1_gn_201401-201412.nc']

Then, I’ll go through a loop across all three variants and calculate the siconc2 files.

from arctichoke.path import list_variable_files
from arctichoke.analysis import make_siconc_files
from arctichoke.params import CAA_BBOX
this_model = 'EC-Earth3P-HR'
for this_variant_label in [
    'r1i1p2f1',
    'r2i1p2f1',
    'r3i1p2f1',
]:
    for this_experiment in ['hist-1950']:
        sithick_list = list_variable_files(
            source_id = this_model,
            variable_id = 'sithick',
            experiment_id = this_experiment,
            variant_label = this_variant_label,
        )
        sivol_list = list_variable_files(
            source_id = this_model,
            variable_id = 'sivol',
            experiment_id = this_experiment,
            variant_label = this_variant_label,
        )
        make_siconc_files(
            sithick_files = sithick_list,
            sivol_files = sivol_list,
            map_bbox = CAA_BBOX,
            precise_trim = False,
        )

	(make_siconc_files) Writing file `/arctichoke_data/bergybits/data/CMIP6/HighResMIP/EC-Earth-Consortium/EC-Earth3P-HR/hist-1950/r1i1p2f1/SImon/siconc2/gn/v20260617/trim_CAA_siconc2_SImon_EC-Earth3P-HR_hist-1950_r1i1p2f1_gn_195001-195012.nc`.
	(make_siconc_files) Writing file `/arctichoke_data/bergybits/data/CMIP6/HighResMIP/EC-Earth-Consortium/EC-Earth3P-HR/hist-1950/r1i1p2f1/SImon/siconc2/gn/v20260617/trim_CAA_siconc2_SImon_EC-Earth3P-HR_hist-1950_r1i1p2f1_gn_195101-195112.nc`.
    ...
	(make_siconc_files) Writing file `/arctichoke_data/bergybits/data/CMIP6/HighResMIP/EC-Earth-Consortium/EC-Earth3P-HR/hist-1950/r1i1p2f1/SImon/siconc2/gn/v20260617/trim_CAA_siconc2_SImon_EC-Earth3P-HR_hist-1950_r1i1p2f1_gn_201401-201412.nc`.
	(make_siconc_files) Writing file `/arctichoke_data/bergybits/data/CMIP6/HighResMIP/EC-Earth-Consortium/EC-Earth3P-HR/hist-1950/r2i1p2f1/SImon/siconc2/gn/v20260617/trim_CAA_siconc2_SImon_EC-Earth3P-HR_hist-1950_r2i1p2f1_gn_195001-195012.nc`.
	...
	(make_siconc_files) Writing file `/arctichoke_data/bergybits/data/CMIP6/HighResMIP/EC-Earth-Consortium/EC-Earth3P-HR/hist-1950/r2i1p2f1/SImon/siconc2/gn/v20260617/trim_CAA_siconc2_SImon_EC-Earth3P-HR_hist-1950_r2i1p2f1_gn_201401-201412.nc`.
	(make_siconc_files) Writing file `/arctichoke_data/bergybits/data/CMIP6/HighResMIP/EC-Earth-Consortium/EC-Earth3P-HR/hist-1950/r3i1p2f1/SImon/siconc2/gn/v20260617/trim_CAA_siconc2_SImon_EC-Earth3P-HR_hist-1950_r3i1p2f1_gn_195001-195012.nc`.
	...
	(make_siconc_files) Writing file `/arctichoke_data/bergybits/data/CMIP6/HighResMIP/EC-Earth-Consortium/EC-Earth3P-HR/hist-1950/r3i1p2f1/SImon/siconc2/gn/v20260617/trim_CAA_siconc2_SImon_EC-Earth3P-HR_hist-1950_r3i1p2f1_gn_201301-201312.nc`.
	(make_siconc_files) Writing file `/arctichoke_data/bergybits/data/CMIP6/HighResMIP/EC-Earth-Consortium/EC-Earth3P-HR/hist-1950/r3i1p2f1/SImon/siconc2/gn/v20260617/trim_CAA_siconc2_SImon_EC-Earth3P-HR_hist-1950_r3i1p2f1_gn_201401-201412.nc`.

Calculating `siconc` for an example HadGEM3-GC31-MM dataset

back to top

The HadGEM3-GC31-HM/MM models have siconc on a regular grid by default, but I need it on the finer irregular grid. Below, I use the code I developed above to calculate siconc2 from sithick and sivol for the year 2000 of the HadGEM3-GC31-MM model.

First, I’ll list what variables are currently available for this model.

from arctichoke.path.variable_paths import list_available_variables

list_available_variables(
    source_id = 'HadGEM3-GC31-MM',
    experiment_id = 'hist-1950',
    list_var_mods = True,
)

{'MOHC/HadGEM3-GC31-MM': {'hist-1950': {
    'r1i1p1f1': {'Ofx': {'areacello': {'': 1}},
    'SImon': {'siu': {'': 65},
     'sithick': {'': 65},
     'siage': {'': 65},
     'siconc': {'': 65},
     'siv': {'': 65},
     'sispeed': {'': 65},
     'sivol': {'': 65}}},
   'r1i2p1f1': {'SImon': {'sithick': {'': 65},
     'siv': {'': 65},
     'siu': {'': 65},
     'siage': {'': 65},
     'siconc': {'': 65},
     'sispeed': {'': 65},
     'sivol': {'': 65}}},
   'r1i3p1f1': {'SImon': {'siu': {'': 65},
     'siconc': {'': 65},
     'sithick': {'': 65},
     'siage': {'': 65},
     'siv': {'': 65},
     'sispeed': {'': 65},
     'sivol': {'': 62}}}
}}}

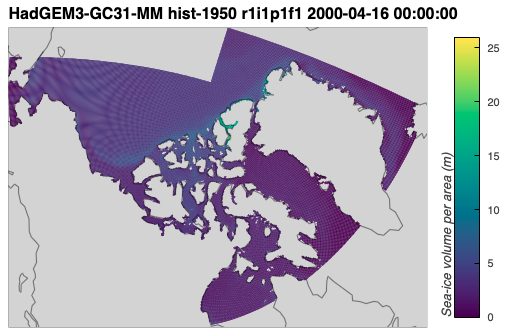

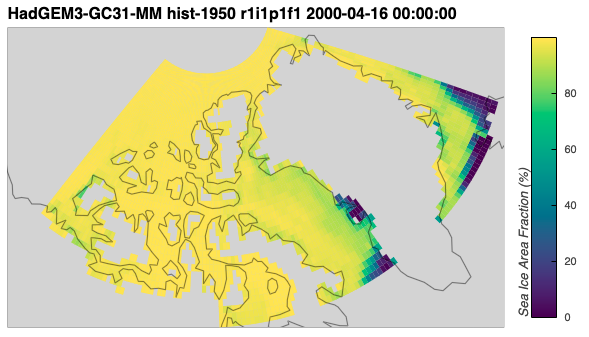

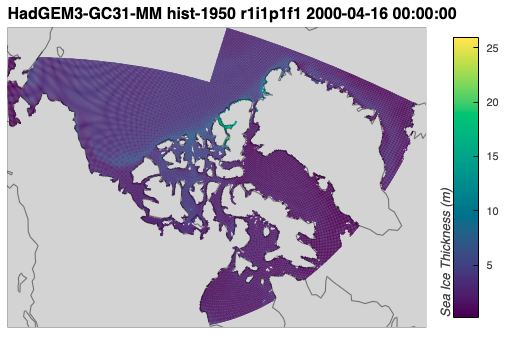

Next, I’ll load example files from the year 2000 for siconc, sithick, and sivol and plot them in April.

HadGEM3_GC31_MM_hist_siconc_2000 = '/arctichoke_data/bergybits/data/CMIP6/HighResMIP/MOHC/HadGEM3-GC31-MM/hist-1950/r1i1p1f1/SImon/siconc/gn/v20170928/siconc_SImon_HadGEM3-GC31-MM_hist-1950_r1i1p1f1_gn_200001-200012.nc'

HadGEM3_GC31_MM_hist_siconc_2000_xr = xr.open_dataset(HadGEM3_GC31_MM_hist_siconc_2000)

from arctichoke.dataset.trim_dataset import trim_latlon
from arctichoke.params import CAA_BBOX

HadGEM3_GC31_MM_hist_siconc_2000_xr_trim = trim_latlon(
    HadGEM3_GC31_MM_hist_siconc_2000_xr,
    map_bbox = CAA_BBOX,
    precise_trim = False,
    verbose = False,
)

from arctichoke.plot.hvplots import quadmesh_map

HadGEM3_GC31_MM_hist_siconc_2000_trim_map = quadmesh_map(
    HadGEM3_GC31_MM_hist_siconc_2000_xr_trim.isel(time=3),
    'siconc',
    map_projection = 'Orthographic',
)
HadGEM3_GC31_MM_hist_siconc_2000_trim_map

The map for siconc from the HadGEM3-GC31-MM model covers a different spatial domain compared to the maps of sithick and sivol below because siconc is a on a regular grid instead of an irregular grid.

HadGEM3_GC31_MM_hist_sithick_2000 = '/arctichoke_data/bergybits/data/CMIP6/HighResMIP/MOHC/HadGEM3-GC31-MM/hist-1950/r1i1p1f1/SImon/sithick/gn/v20170928/sithick_SImon_HadGEM3-GC31-MM_hist-1950_r1i1p1f1_gn_200001-200012.nc'

HadGEM3_GC31_MM_hist_sithick_2000_xr = xr.open_dataset(HadGEM3_GC31_MM_hist_sithick_2000)

from arctichoke.dataset.trim_dataset import trim_latlon
from arctichoke.params import CAA_BBOX

HadGEM3_GC31_MM_hist_sithick_2000_xr_trim = trim_latlon(
    HadGEM3_GC31_MM_hist_sithick_2000_xr,
    map_bbox = CAA_BBOX,
    precise_trim = False,
    verbose = False,
)

from arctichoke.plot.hvplots import quadmesh_map

HadGEM3_GC31_MM_hist_sithick_2000_trim_map = quadmesh_map(
    HadGEM3_GC31_MM_hist_sithick_2000_xr_trim.isel(time=3),
    'sithick',
    map_projection = 'Orthographic',
)
HadGEM3_GC31_MM_hist_sithick_2000_trim_map

HadGEM3_GC31_MM_hist_sivol_2000 = '/arctichoke_data/bergybits/data/CMIP6/HighResMIP/MOHC/HadGEM3-GC31-MM/hist-1950/r1i1p1f1/SImon/sivol/gn/v20170928/sivol_SImon_HadGEM3-GC31-MM_hist-1950_r1i1p1f1_gn_200001-200012.nc'

HadGEM3_GC31_MM_hist_sivol_2000_xr = xr.open_dataset(HadGEM3_GC31_MM_hist_sivol_2000)

from arctichoke.dataset.trim_dataset import trim_latlon
from arctichoke.params import CAA_BBOX

HadGEM3_GC31_MM_hist_sivol_2000_xr_trim = trim_latlon(
    HadGEM3_GC31_MM_hist_sivol_2000_xr,
    map_bbox = CAA_BBOX,
    precise_trim = False,
    verbose = False,
)

from arctichoke.plot.hvplots import quadmesh_map

HadGEM3_GC31_MM_hist_sivol_2000_trim_map = quadmesh_map(
    HadGEM3_GC31_MM_hist_sivol_2000_xr_trim.isel(time=3),
    'sivol',
    map_projection = 'Orthographic',
)
HadGEM3_GC31_MM_hist_sivol_2000_trim_map

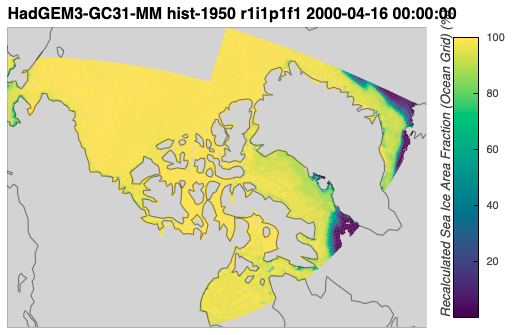

Next, I’ll calculate siconc2 from sithick and sivol using my calc_siconc() function.

from arctichoke.analysis import calc_siconc

HadGEM3_GC31_MM_hist_siconc2_2000_xr_trim = calc_siconc(
    HadGEM3_GC31_MM_hist_sithick_2000_xr_trim,
    HadGEM3_GC31_MM_hist_sivol_2000_xr_trim,
)

from arctichoke.plot.hvplots import quadmesh_map

HadGEM3_GC31_MM_hist_siconc2_2000_trim_map = quadmesh_map(
    HadGEM3_GC31_MM_hist_siconc2_2000_xr_trim.isel(time=3),
    'siconc2',
    map_projection = 'Orthographic',
)
HadGEM3_GC31_MM_hist_siconc2_2000_trim_map

That visually matches with the plot of the siconc data on the regular grid above. In order to compare the two for validation, I’ll need to interpolate the irregular grid data of siconc2 onto the regular grid of siconc.

Validating the `siconc` calculation by interpolating to a regular grid

back to top

<TODO: Fill in this section>

Writing calculated HadGEM3-GC31-MM `siconc` data to file

back to top

Having validated that calculating siconc from sithick and sivol works for HadGEM3-GC31-MM, I’ll use my function make_siconc_files() to write all the siconc2 data to files that I can use later. I can do this from the original sithick and sivol files, trimming them to the CAA during the process.

from arctichoke.path import list_variable_files
from arctichoke.analysis import make_siconc_files
from arctichoke.params import CAA_BBOX
this_model = 'HadGEM3-GC31-MM'
for this_variant_label in [
    'r1i1p1f1',
    'r1i2p1f1',
    'r1i3p1f1',
]:
    for this_experiment in ['hist-1950']:
        sithick_list = list_variable_files(
            source_id = this_model,
            variable_id = 'sithick',
            experiment_id = this_experiment,
            variant_label = this_variant_label,
        )
        sivol_list = list_variable_files(
            source_id = this_model,
            variable_id = 'sivol',
            experiment_id = this_experiment,
            variant_label = this_variant_label,
        )
        make_siconc_files(
            sithick_files = sithick_list,
            sivol_files = sivol_list,
            map_bbox = CAA_BBOX,
            precise_trim = False,
        )

	(make_siconc_files) Writing file `/arctichoke_data/bergybits/data/CMIP6/HighResMIP/MOHC/HadGEM3-GC31-MM/hist-1950/r1i1p1f1/SImon/siconc2/gn/v20260617/trim_CAA_siconc2_SImon_HadGEM3-GC31-MM_hist-1950_r1i1p1f1_gn_195001-195012.nc`.
	(make_siconc_files) Writing file `/arctichoke_data/bergybits/data/CMIP6/HighResMIP/MOHC/HadGEM3-GC31-MM/hist-1950/r1i1p1f1/SImon/siconc2/gn/v20260617/trim_CAA_siconc2_SImon_HadGEM3-GC31-MM_hist-1950_r1i1p1f1_gn_195101-195112.nc`.
    ...
	(make_siconc_files) Writing file `/arctichoke_data/bergybits/data/CMIP6/HighResMIP/MOHC/HadGEM3-GC31-MM/hist-1950/r1i1p1f1/SImon/siconc2/gn/v20260617/trim_CAA_siconc2_SImon_HadGEM3-GC31-MM_hist-1950_r1i1p1f1_gn_201401-201412.nc`.
	(make_siconc_files) Writing file `/arctichoke_data/bergybits/data/CMIP6/HighResMIP/MOHC/HadGEM3-GC31-MM/hist-1950/r1i2p1f1/SImon/siconc2/gn/v20260617/trim_CAA_siconc2_SImon_HadGEM3-GC31-MM_hist-1950_r1i2p1f1_gn_195001-195012.nc`.
    ...
	(make_siconc_files) Writing file `/arctichoke_data/bergybits/data/CMIP6/HighResMIP/MOHC/HadGEM3-GC31-MM/hist-1950/r1i2p1f1/SImon/siconc2/gn/v20260617/trim_CAA_siconc2_SImon_HadGEM3-GC31-MM_hist-1950_r1i2p1f1_gn_201401-201412.nc`.
	(make_siconc_files) Writing file `/arctichoke_data/bergybits/data/CMIP6/HighResMIP/MOHC/HadGEM3-GC31-MM/hist-1950/r1i3p1f1/SImon/siconc2/gn/v20260617/trim_CAA_siconc2_SImon_HadGEM3-GC31-MM_hist-1950_r1i3p1f1_gn_195001-195012.nc`.
    ...
	(make_siconc_files) Writing file `/arctichoke_data/bergybits/data/CMIP6/HighResMIP/MOHC/HadGEM3-GC31-MM/hist-1950/r1i3p1f1/SImon/siconc2/gn/v20260617/trim_CAA_siconc2_SImon_HadGEM3-GC31-MM_hist-1950_r1i3p1f1_gn_201301-201312.nc`.
	(make_siconc_files) Writing file `/arctichoke_data/bergybits/data/CMIP6/HighResMIP/MOHC/HadGEM3-GC31-MM/hist-1950/r1i3p1f1/SImon/siconc2/gn/v20260617/trim_CAA_siconc2_SImon_HadGEM3-GC31-MM_hist-1950_r1i3p1f1_gn_201401-201412.nc`.

Writing calculated HadGEM3-GC31-HM `siconc` data to file

back to top

The HadGEM3-GC31-HM model has the same grid issue as HadGEM3-GC31-MM, that being the siconc variable is on a regular grid as opposed to an irregular grid. I can take a look at the variables available as of right now for HadGEM3-GC31-HM.

from arctichoke.path.variable_paths import list_available_variables

list_available_variables(
    source_id = 'HadGEM3-GC31-HM',
    experiment_id = 'hist-1950',
    list_var_mods = True,
)

{'MOHC/HadGEM3-GC31-HM': {'hist-1950': {
    'r1i1p1f1': {'Ofx': {'areacello': {'': 1}},
    'SImon': {'siage': {'': 65},
     'siv': {'': 65},
     'siu': {'': 65},
     'siconc': {'': 65},
     'sithick': {'': 65},
     'sispeed': {'': 65},
     'sivol': {'': 65}}},
   'r1i3p1f1': {'SImon': {'siconc': {'': 65},
     'sithick': {'': 65},
     'siu': {'': 65},
     'siage': {'': 65},
     'siv': {'': 65},
     'sispeed': {'': 65},
     'sivol': {'': 65}}}
 }},
 'NERC/HadGEM3-GC31-HM': {'hist-1950': {
    'r1i2p1f1': {'SImon': {
     'siconc': {'': 65},
     'siu': {'': 65},
     'sithick': {'': 65},
     'siv': {'': 65},
     'siage': {'': 65},
     'sispeed': {'': 65},
     'sivol': {'': 65}}}
 }}
}

The only difference here compared to HadGEM3-GC31-MM is the resolution is higher, so I’ll use my function make_siconc_files() to write all the siconc2 data to files that I can use later, just as above.

from arctichoke.path import list_variable_files
from arctichoke.analysis import make_siconc_files
from arctichoke.params import CAA_BBOX
this_model = 'HadGEM3-GC31-HM'
for this_variant_label in [
    'r1i1p1f1',
    'r1i2p1f1',
    'r1i3p1f1',
]:
    for this_experiment in ['hist-1950']:
        sithick_list = list_variable_files(
            source_id = this_model,
            variable_id = 'sithick',
            experiment_id = this_experiment,
            variant_label = this_variant_label,
        )
        sivol_list = list_variable_files(
            source_id = this_model,
            variable_id = 'sivol',
            experiment_id = this_experiment,
            variant_label = this_variant_label,
        )
        make_siconc_files(
            sithick_files = sithick_list,
            sivol_files = sivol_list,
            map_bbox = CAA_BBOX,
            precise_trim = False,
        )

	(make_siconc_files) Writing file `/arctichoke_data/bergybits/data/CMIP6/HighResMIP/MOHC/HadGEM3-GC31-HM/hist-1950/r1i1p1f1/SImon/siconc2/gn/v20260617/trim_CAA_siconc2_SImon_HadGEM3-GC31-HM_hist-1950_r1i1p1f1_gn_195001-195012.nc`.
	(make_siconc_files) Writing file `/arctichoke_data/bergybits/data/CMIP6/HighResMIP/MOHC/HadGEM3-GC31-HM/hist-1950/r1i1p1f1/SImon/siconc2/gn/v20260617/trim_CAA_siconc2_SImon_HadGEM3-GC31-HM_hist-1950_r1i1p1f1_gn_195101-195112.nc`.
    ...
	(make_siconc_files) Writing file `/arctichoke_data/bergybits/data/CMIP6/HighResMIP/MOHC/HadGEM3-GC31-HM/hist-1950/r1i1p1f1/SImon/siconc2/gn/v20260617/trim_CAA_siconc2_SImon_HadGEM3-GC31-HM_hist-1950_r1i1p1f1_gn_201401-201412.nc`.
	(make_siconc_files) Writing file `/arctichoke_data/bergybits/data/CMIP6/HighResMIP/MOHC/HadGEM3-GC31-HM/hist-1950/r1i2p1f1/SImon/siconc2/gn/v20260617/trim_CAA_siconc2_SImon_HadGEM3-GC31-HM_hist-1950_r1i2p1f1_gn_195001-195012.nc`.
    ...
	(make_siconc_files) Writing file `/arctichoke_data/bergybits/data/CMIP6/HighResMIP/MOHC/HadGEM3-GC31-HM/hist-1950/r1i2p1f1/SImon/siconc2/gn/v20260617/trim_CAA_siconc2_SImon_HadGEM3-GC31-HM_hist-1950_r1i2p1f1_gn_201401-201412.nc`.
	(make_siconc_files) Writing file `/arctichoke_data/bergybits/data/CMIP6/HighResMIP/MOHC/HadGEM3-GC31-HM/hist-1950/r1i3p1f1/SImon/siconc2/gn/v20260617/trim_CAA_siconc2_SImon_HadGEM3-GC31-HM_hist-1950_r1i3p1f1_gn_195001-195012.nc`.
    ...
	(make_siconc_files) Writing file `/arctichoke_data/bergybits/data/CMIP6/HighResMIP/MOHC/HadGEM3-GC31-HM/hist-1950/r1i3p1f1/SImon/siconc2/gn/v20260617/trim_CAA_siconc2_SImon_HadGEM3-GC31-HM_hist-1950_r1i3p1f1_gn_201301-201312.nc`.
	(make_siconc_files) Writing file `/arctichoke_data/bergybits/data/CMIP6/HighResMIP/MOHC/HadGEM3-GC31-HM/hist-1950/r1i3p1f1/SImon/siconc2/gn/v20260617/trim_CAA_siconc2_SImon_HadGEM3-GC31-HM_hist-1950_r1i3p1f1_gn_201401-201412.nc`.

Calculating `siconc` for an example `HadGEM3-GC31-HH` dataset

back to top

The HadGEM3-GC31-HH model has siconc on the irregular grid by default, however I have been unable to figure out how to actually open those data files and work with them. Below, I use the code I developed above to calculate siconc2 from sithick and sivol for the year 2000 of the HadGEM3-GC31-HH model.

First, I’ll list what variables are currently available for this model.

from arctichoke.path.variable_paths import list_available_variables

list_available_variables(
    source_id = 'HadGEM3-GC31-HH',
    experiment_id = 'hist-1950',
    list_var_mods = True,
)

{'MOHC/HadGEM3-GC31-HH': {'hist-1950': None},
 'NERC/HadGEM3-GC31-HH': {'hist-1950': {
    'r1i1p1f1': {'SImon': {
     'sithick': {'': 65},
     'siv': {'': 65},
     'siu': {'': 65},
     'siconc': {'': 64, 'trim_CAA_': 3},
     'siage': {'': 65},
     'sispeed': {'': 65, 'trim_CAA_': 65},
     'sivol': {'': 65}}}
}}}

Next, I’ll load example files from the year 2000 for siconc, sithick, and sivol and plot them in April.

HadGEM3_GC31_HH_hist_siconc_2000 = '/arctichoke_data/bergybits/data/CMIP6/HighResMIP/NERC/HadGEM3-GC31-HH/hist-1950/r1i1p1f1/SImon/siconc/gn/v20210416/siconc_SImon_HadGEM3-GC31-HH_hist-1950_r1i1p1f1_gn_200001-200012.nc'

from arctichoke.dataset.trim_dataset import trim_latlon
from arctichoke.params import CAA_BBOX

HadGEM3_GC31_HH_hist_siconc_2000_xr_trim = trim_latlon(
    HadGEM3_GC31_HH_hist_siconc_2000,
    save_as = 'HadGEM3_GC31_HH_hist_siconc_2000_xr_trim.nc',
    map_bbox = CAA_BBOX,
    precise_trim = False,
    verbose = True,
)

HadGEM3_GC31_HH_hist_siconc_2000_xr_trim

As mentioned above, I can’t seem to work with the HadGEM3-GC31-HH data for the siconc variable.

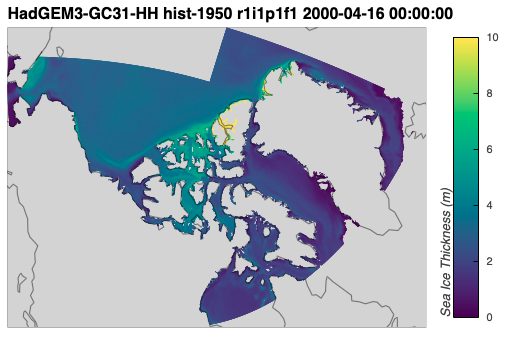

HadGEM3_GC31_HH_hist_sithick_2000 = '/arctichoke_data/bergybits/data/CMIP6/HighResMIP/NERC/HadGEM3-GC31-HH/hist-1950/r1i1p1f1/SImon/sithick/gn/v20210416/sithick_SImon_HadGEM3-GC31-HH_hist-1950_r1i1p1f1_gn_200001-200012.nc'

from arctichoke.dataset.trim_dataset import trim_latlon
from arctichoke.params import CAA_BBOX

HadGEM3_GC31_HH_hist_sithick_2000_xr_trim = trim_latlon(
    HadGEM3_GC31_HH_hist_sithick_2000,
    map_bbox = CAA_BBOX,
    precise_trim = False,
    verbose = True,
)

import xarray as xr

from arctichoke.plot.hvplots import quadmesh_map
from arctichoke.params import sea_ice_vars

si_var = 'sithick'

HadGEM3_GC31_HH_hist_sithick_2000_trim_map = quadmesh_map(
    HadGEM3_GC31_HH_hist_sithick_2000_xr_trim.isel(time=3),
    si_var,
    map_projection = 'Orthographic',
    clims = sea_ice_vars[si_var]['plot_range'],
    verbose = True,
)
HadGEM3_GC31_HH_hist_sithick_2000_trim_map

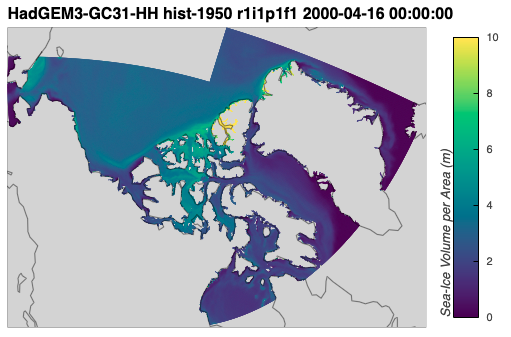

HadGEM3_GC31_HH_hist_sivol_2000 = '/arctichoke_data/bergybits/data/CMIP6/HighResMIP/NERC/HadGEM3-GC31-HH/hist-1950/r1i1p1f1/SImon/sivol/gn/v20210416/sivol_SImon_HadGEM3-GC31-HH_hist-1950_r1i1p1f1_gn_200001-200012.nc'

from arctichoke.dataset.trim_dataset import trim_latlon
from arctichoke.params import CAA_BBOX

HadGEM3_GC31_HH_hist_sivol_2000_xr_trim = trim_latlon(
    HadGEM3_GC31_HH_hist_sivol_2000,
    map_bbox = CAA_BBOX,
    precise_trim = False,
    verbose = True,
)

import xarray as xr

from arctichoke.plot.hvplots import quadmesh_map
from arctichoke.params import sea_ice_vars

si_var = 'sivol'

HadGEM3_GC31_HH_hist_sivol_2000_trim_map = quadmesh_map(
    HadGEM3_GC31_HH_hist_sivol_2000_xr_trim.isel(time=3),
    si_var,
    map_projection = 'Orthographic',
    clims = sea_ice_vars[si_var]['plot_range'],
    verbose = True,
)
HadGEM3_GC31_HH_hist_sivol_2000_trim_map

Now, I’ll calculate siconc2 from sithick and sivol using my calc_siconc() function.

from arctichoke.analysis import calc_siconc

HadGEM3_GC31_HH_hist_siconc2_2000_xr_trim = calc_siconc(
    HadGEM3_GC31_HH_hist_sithick_2000_xr_trim,
    HadGEM3_GC31_HH_hist_sivol_2000_xr_trim,
)

from arctichoke.plot.hvplots import quadmesh_map
from arctichoke.params import sea_ice_vars

si_var = 'siconc2'

HadGEM3_GC31_HH_hist_siconc2_2000_trim_map = quadmesh_map(
    HadGEM3_GC31_HH_hist_siconc2_2000_xr_trim.isel(time=3),
    si_var,
    map_projection = 'Orthographic',
    clims = sea_ice_vars[si_var]['plot_range'],
    verbose = True,
)
HadGEM3_GC31_HH_hist_siconc2_2000_trim_map

Writing calculated HadGEM3-GC31-HH `siconc` data to file

back to top

For the HadGEM3-GC31-HM model, the data files are big enough that I need to be careful about loading too much into memory or else my kernel crashes. Therefore, when I loop through to calculate siconc2 files, I will specify with_modification = 'trim_CAA_'. This will select sithick and sivol files that have already been cut down to just the CAA region, reducing their size. For details on that process, see Trimming data to the CAA region. This is opposed to when I calculated siconc2 for HadGEM3-GC31-MM and HadGEM3-GC31-HM where I could specify map_bbox = CAA_BBOX in the make_siconc_files() function. For HadGEM3-GC31-HM, it is important to not pass a value for map_bbox to make_siconc_files(). Also note here, there is only one variant for HadGEM3-GC31-HH.

from arctichoke.path import list_variable_files
from arctichoke.analysis import make_siconc_files
from arctichoke.params import CAA_BBOX
this_model = 'HadGEM3-GC31-HH'
for this_variant_label in [
    'r1i1p1f1',
]:
    for this_experiment in ['hist-1950']:
        sithick_list = list_variable_files(
            source_id = this_model,
            variable_id = 'sithick',
            experiment_id = this_experiment,
            variant_label = this_variant_label,
            with_modification = 'trim_CAA_',
        )
        sivol_list = list_variable_files(
            source_id = this_model,
            variable_id = 'sivol',
            experiment_id = this_experiment,
            variant_label = this_variant_label,
            with_modification = 'trim_CAA_',
        )
        make_siconc_files(
            sithick_files = sithick_list,
            sivol_files = sivol_list,
            precise_trim = False,
        )

	(make_siconc_files) Writing file `/arctichoke_data/bergybits/data/CMIP6/HighResMIP/MOHC/HadGEM3-GC31-HH/hist-1950/r1i1p1f1/SImon/siconc2/gn/v20260617/trim_CAA_siconc2_SImon_HadGEM3-GC31-HH_hist-1950_r1i1p1f1_gn_195001-195012.nc`.
	(make_siconc_files) Writing file `/arctichoke_data/bergybits/data/CMIP6/HighResMIP/MOHC/HadGEM3-GC31-HH/hist-1950/r1i1p1f1/SImon/siconc2/gn/v20260617/trim_CAA_siconc2_SImon_HadGEM3-GC31-HH_hist-1950_r1i1p1f1_gn_195101-195112.nc`.
    ...
	(make_siconc_files) Writing file `/arctichoke_data/bergybits/data/CMIP6/HighResMIP/MOHC/HadGEM3-GC31-HH/hist-1950/r1i1p1f1/SImon/siconc2/gn/v20260617/trim_CAA_siconc2_SImon_HadGEM3-GC31-HH_hist-1950_r1i1p1f1_gn_201301-201312.nc`.
	(make_siconc_files) Writing file `/arctichoke_data/bergybits/data/CMIP6/HighResMIP/MOHC/HadGEM3-GC31-HH/hist-1950/r1i1p1f1/SImon/siconc2/gn/v20260617/trim_CAA_siconc2_SImon_HadGEM3-GC31-HH_hist-1950_r1i1p1f1_gn_201401-201412.nc`.

With that, I now have data files of sea ice concentration for all HadGEM3-GC31 models that I can use in Identifying landfast ice.

Calculating siconc from sithick and sivol

Contents

Introduction

Example file from EC-Earth3P-HR

Calculating siconc

Validating the siconc calculation

Writing calculated siconc data to file

Calculating siconc for an example HadGEM3-GC31-MM dataset

Validating the siconc calculation by interpolating to a regular grid

Writing calculated HadGEM3-GC31-MM siconc data to file

Writing calculated HadGEM3-GC31-HM siconc data to file

Calculating siconc for an example HadGEM3-GC31-HH dataset

Writing calculated HadGEM3-GC31-HH siconc data to file

Calculating `siconc` from `sithick` and `sivol`

Calculating `siconc`

Validating the `siconc` calculation

Writing calculated `siconc` data to file

Calculating `siconc` for an example HadGEM3-GC31-MM dataset

Validating the `siconc` calculation by interpolating to a regular grid

Writing calculated HadGEM3-GC31-MM `siconc` data to file

Writing calculated HadGEM3-GC31-HM `siconc` data to file

Calculating `siconc` for an example `HadGEM3-GC31-HH` dataset

Writing calculated HadGEM3-GC31-HH `siconc` data to file
